Air pressure in the Wing5 spar
Current estimate: under 5 psi, probably 3 psi or even less. Flights will be explored for 1 psi, 2 psi, 3 psi, 4 psi, 5 psi. Inflation to burst failure will be done before a spar is made for flight testing. Such is less than kiteboarders' LEI pressure because of the air-beam splinting scheme.

Air pressure will be checked just before each flight.
Inflation will be by manual pumping.

Adventure:

At 10 psi, he showed buckling at the seam between two sections of the spar case.
The video does not use the splinted-cabled air-beam scheme.
And

And splinted air beam burst test for loading:

And splinted air beam burst test for pressure at 1.3 bar (about 18.8 psi); performance would depend on spar case material and size and seam structure:

===========================================
Splinted air beam vs truss for the limited-performance -Dockweiler-Only Wing5 ... some, not all guessed advantages
Deployment

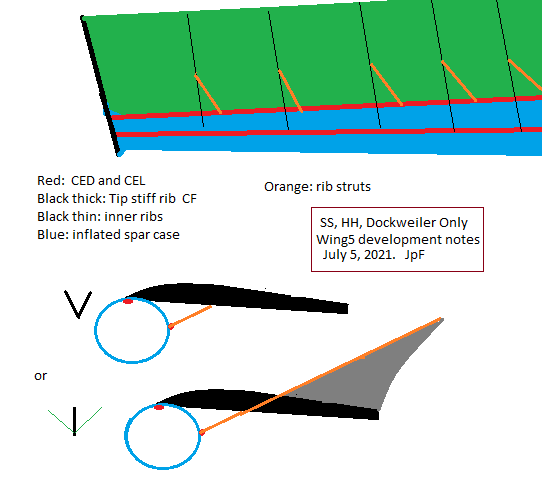

Air beam shape for immediate airfoil LE shape

[JoeF]


Compression element interface with spar case
Spanwise slippage of spar case relative to stations on the compression element(CE, CEL, CED) are unwanted.
Herein is described a method that avoids some disconcerting aspects of other methods.

Cog belt is bonded to the top of the compression element and a line of soft material is partnered
Semi-circular-cross-sectioned line of deformable material (foam, silicone, PU, etc. (many to be explored)) bonded to spar case. The apex of the semi-circle will be pressing against the cogs in the cog belt.
Some tiny elastic straps each 3 feet or so to temporarily hold CE, or an elastic pocket system may be employed, not sure of choice yet.

If tiny straps:
Open spar case; place CEwithCogs onto the line of soft material. Set the five or so tiny straps to hold positions until spar bladder is inflated. This method is simpler to construct than the next described method; I will be constructing both methods in order to compare matters.

If elastic pocket system is constructed, then the soft material is inside top of the pocket; the pocket is sewn to the spar case; the pocket is in segments to allow manual turning over of the CEwithCogs. The CEwithCogs is slid into the elastic pocket segments; once position is correct, turn the CEwithCogs over 180 degrees so that the cogs face the soft material. The elastic pocket firmly holds the CEwithCogs oriented. For packing up, turn the CEwithCogs over so the cogs no longer face the soft material; then slide the CEwithCogs out of the pocket for coiling for pack and tote.

While the bladder is inflated, the bladder presses the bottom of the CEwithCogs; then the cogs press into the line of soft material; the spar case is tensed; things hold in place. A terrific friction is obtained between the spar case and the CEwithCogs. Flight dynamics will find that that friction keeps the spar case and CEwithCogs in a firm or tight place-keeping union. Upon packing, the CEwithCogs easily separates from the spar case.

There are some interesting COTS printer timing belts that may fit the needs of the above method.
Adventure:

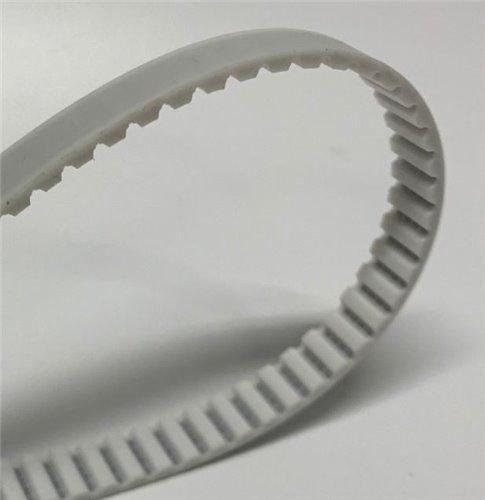

Hilitand 6mm Timing Belt 3D Printer Belt White GT2 Open Synchronous Belt PU with Steel Core 10M
https://nk-technics.com/at-pitch/pu-tim ... length.htm
Other COTS products may serve; investigation is ongoing.

Note: Other rough or spiky ribbons or belts will be explored; the timing belts are early contenders. I aim to avoid hook-and-loop methods.
===================
Potential of DIY ribbon of cogs or ribs? Yes, several ways.
E.g.: Base ribbon, then epoxy tiny ribs onto ribbon. Then bond the ribbed ribbon to the top of the CE. The labor of cutting and epoxy bonding the little ribs to the ribbon might be worth the effort.

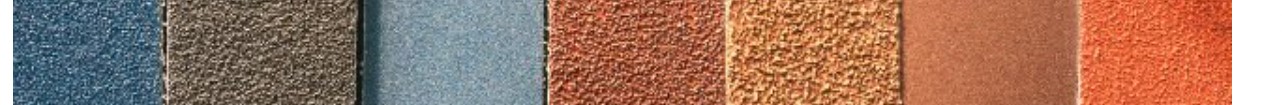

E.g. ?: Bond a ribbon of coarse sandpaper to top of the CE ? Grit and wear experience will be observed and appraised. What grit will work best with what soft material? Adventure: https://www.bobvila.com/articles/2145-q ... sandpaper/
E.g. ? .... exploring ... Note: The combination of a certain soft material facing a certain grit will result in a specific experience. We do not want to wear out the soft material too soon!
Adventure: https://en.wikipedia.org/wiki/Toothed_belt
https://www.directindustry.com/prod/meg ... 37337.html

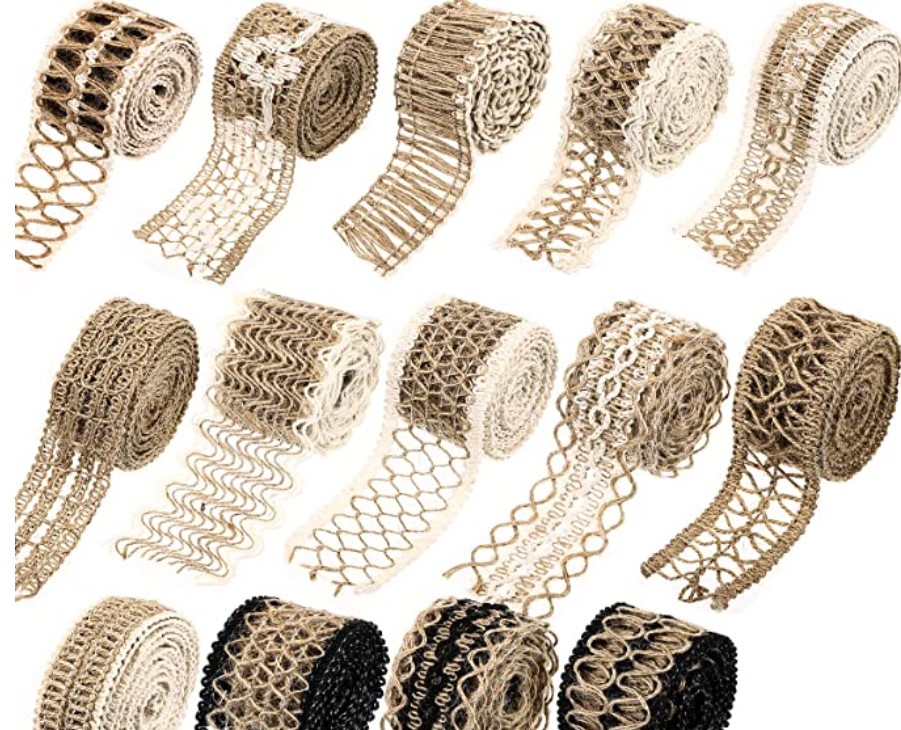

E.g.? chain, bead chain, Roller Blind Bead Chain Cord, one side of zipper not used as zipper, perforated ribbon, coarse twisted string, honeycomb ribbon, Sew Stitch On Gold Spike Stud Cone Flatback Punk Rock Trim mesh, Bead Craft (Gold Spike)Crystal Rhinestone Silver Ribbon ; mesh ribbon, brush tines cut and epoxied as ribs on flat ribbon--look for square tines; square wire; toothed belt; _____ :: Whatever selection, these would press into the opposing soft material to create friction; non-destructive bite is wanted. Avoid hook-and-loop as the packing labor is onerous.
E.g.?: Epoxy wet ribbon; place ribbon of screen on wet epoxy; cure; trim excess screen. Keep the ribbon with ribs of screen strands. Test.


[JoeF]

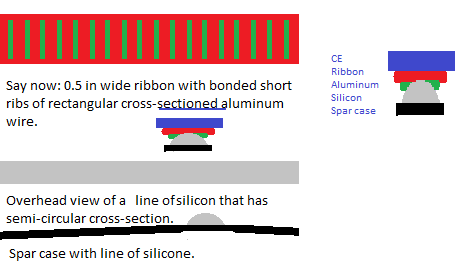

Small cuts of square wire bonded to a ribbon at intervals of maybe twice the width of the rectangular wire might well give a high friction against a bead of semi-circular cross-sectioned silicon. The edges of the square or rectangular wire would bite into the silicone. The short rib wire segments might be of aluminum.


==============
https://en.wikipedia.org/wiki/Warp_and_weft

[KaiMartin]

Small cuts of square wire bonded to a ribbon at intervals of maybe twice the width of the rectangular wire might well give a high friction against a bead of semi-circular cross-sectioned silicon. The edges of the square or rectangular wire would bite into the silicone. The short rib wire segments might be of aluminum.

The two parts are supposed to interlock geometrically. So the coefficient of friction may be less important. Note that a bicycle chain is lubricated to minimize friction. However, it does not jump from the gear (most of the time). Due to the interlocking geometry there is no need to press the chain on the gear.

How about 3D printing "teeth" on textile ribbon? At the right temperature the first layers of molten filament will bond properly with the ribbon. On top of this foundation the 3D printer can add any shape to provide the desired locking effect. I'd go for ribbons on both sides. This avoids the task of bonding mechanically loaded parts to a hard surface.

---<)kaimartin(>---

[JoeF]

Kai,
... ever interested in your insights! Thanks. As the variants are tried, I'll report details.
=================================

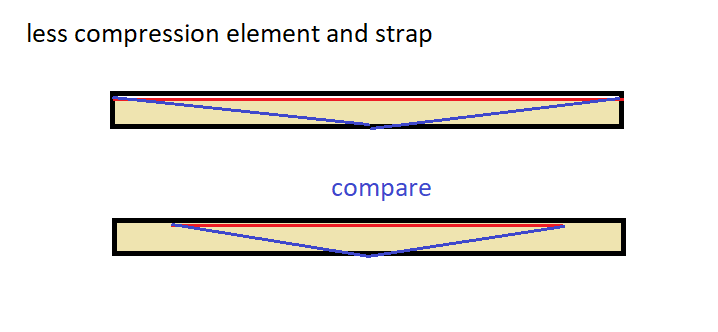

Presently I am appreciating a difference of uses of splinted air beams. Some uses require end-of-beam integration of compression elements. In a wing being considered, the wing-tip regions might not need the compression element present while letting the simple airbeam suffice. Most likely beam buckling regions of the spar: the compression element may be less than the span length. Strap lengths may be shorter. Some mass will be saved by the seen reduction.
