Nesting forms? Concerned about volume of the pack?

Notice that cross-section angles nest for transport. L
But notice also that Zee cross-section beams also nest for transport. Z
Telescopic ring cross-section form a kind of nesting, but then gross forms no not nest.
Coilable flats that are pre-stressed to become circular arc in cross section will nest coiled; but coils do not grossly nest.
Flats nest; flats then might assemble into integrated forms.

[JoeF]

The Movement today was extended into another forum with the following post:

The 5-ft-pack HG Movement
======================
Anyone is invited to be part of the exploratory 5-ft-pack HG Movement.
=====================================================
Place your ideas, sketches, experiment reports, tests, etc. in front of the world.
The Movement has been underway in other HG forums for some time now.
The Movement may have an exciting presence in this forum also.
Examine all the technologies and possibilities; bring the best forward for examination.
=====================================================

Starting:
1. Bring forward all the various options from the hybrid inflatable worlds.
2. Examine splinted bladdered encased spars.
3. Explore foldable pre-stressed shells set in pack in accordion means.
4. Combine technologies where needed.
5. Explore deployable spars.
6. Examine soft-cabling options.
7. Explore all the other hang gliding forums for sharings on the Movement.
8. Respect niche HG activity; that is, one size need not fit all. Specialize designs to meet the niche activity.
9. Be ready to alter the Movement to "5-ft-pack-or-shorter HG Movement".
10. Get architects and engineers interested in the Movement. And artists.
11. Consider Safe-Splat and also High-Hat enhancements all in the same pack.
12. Trust that ways will be found and developed that will bring forward very low-volume low-mass convenient quickly-assembled and quickly packed HGs. The adventure during fulfilling such trust may be choice and wondrous. Be a part of this Movement.

..... There are many more seed starting points; bring those in. Then All are invited to forward the matter to many optional completions. Ask questions. Wonder. Imagine. Dare. Experiment. Test. Model. Put up prizes. Challenge masters students. Make this a world Movement.
======================================
===================================

This topic is dedicated to the "The 5 ft-pack-HG Movement"
Move it forward! Some top designs are anticipated one day!. Ease of assembly and packing is invited. Safety is paramount.
Designs need not be fit for "all possible uses", but may be with limited activity. Consider "Dandy Handy Dockweiler" sledders in conservative airs. Yet consider more strenuous tasking also. Aim for bus-ability. Consider wearing toted sail. Consider having all tote parts play a part in the designs. Explore sail wrap after frame up; sail off first and then frame packing. Explore telescopic spars, tapered spars, angle cross-section. Consider fiberglass, carbon-fiber, titanium. Consider non-metal cables. Consider space frames. Consider whatever might bring to hang gliding a busable 5-ft long pack. Stay with airframes for coupling with pilot forces. Consider putting aside cars and trucks. Consider wheels or skid for drag or wheeled tote. Consider ribs that snap two parts on either side of the sail for no-pockets. Consider bags for the wing-wrap. Etc.

====================

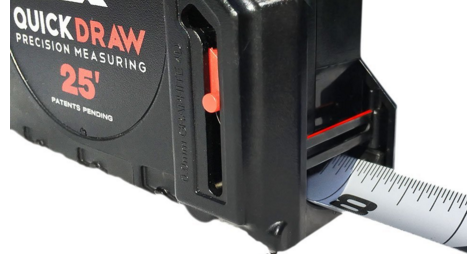

Curved wing stowed in flat-form coil with easy extension and quick packing:

[JoeF]

keder

http://tinyurl.com/KederMethodsIMAGES

=================================

http://www.lightweightmanufacturing.com/keder_advantages.html

[JoeF]

Pressure Induced Stability:
From Pneumatic Structures to Tensairity® [Links a PDF document]

[JoeF]

Legend: HH :: high hat. TCF :: triangle control frame. SS :: Safe-Splat.

Be already wearing ever-ready harness during tote on bus to near site. Hike. Arrive.

1. From 5-ft pack:
Uncoil main spar; sock it; insert ribs, HH, TCF, SS; inflate; wire it.

2. Check (wing, self, people, animals, properties, wind, environment, risks, incline, airspace, traffic, animals, flight plan). Decide.

3. Hook in; check; run, fly, land, rejoice, review, journal, celebrate, thank. Repeat.

Sites: Flatland. Street. Hill. Park.
=========================================================================
Join this topic thread with:
Inflated Aircraft
and
Making Splinted Encased Air Beams
===========================================================================
Though NOT required in US for pilot-carriable hang gliding meeting F.A.R. 103:
= Not official piloting-status rating
= Not official medical or psychological clearance certificate
= Not wing certification
= Not membership in any private club or corporation
= Not insurance of any kind
= Not passing of any official test of knowledge
= Not passing of any official test of skills
= Not meeting any official test for flight fitness

there is an FAA recommendation: self regulate to fly safely in ways to avoid injuring other people, properties, and other aircraft.
So, in concert with the recommendation to self regulate, consider carefully to
get fit for flight in every relevant way in order to safely fulfill one's flight plan.

What might that getting fit entail?
See: Getting Fit for Flight

===========================================================================

[JoeF]

Today's waking question:
Will deployable truss options trump tensairity options for HG spar for short-pack HG (< 5 ft)?

[JoeF]

Maybe worthy of study:
Deployable Antenna Systems
Robust paper:
Helical Quadrifilar Antenna
Coilable Boom PDF document.

See also:Coilable Boom Systems (PDF)


=============================================== AND
JPLSAILMAST

New, carbon-fiber masts use the same proven structural design as the previous masts—continuous, coilable, longerons running the complete length of the mast. These longerons can be coiled and stowed in less than 1% of their deployed length, making a compact package for launch. The mast is self-deployed, using the strain energy stored in the coiled and stowed longerons. A lanyard controls the rate of deployment. The mass of the carbon-fiber structure is less than 35 grams / meter when deployed.

Structure of mast uses carbon fiber longerons and battens, and strong, flexible thread diagonals to balance tension and provide stiffness.
The mast design consists of three continuous, carbon-fiber longerons forming an equilateral triangular section and kept apart by small structural elements called �battens," which retain a preload when deployed. �Diagonals� are small structural elements that connect diagonally opposite batten connections to provide shear stiffness for maintaining the straightness of the mast. The combination of battens and diagonals is a design element repeated regularly along the length of the mast, each element forming a �bay." The diagonals are of a length that buckles the battens, thus maintaining tension in the diagonals and providing stiffness.

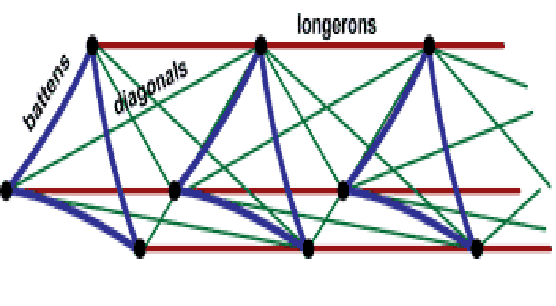

battens, longerons, diagonals,

This ultra lightweight graphite coilable mast is of a slenderness far beyond that of any other structure previously flown, and providing an advance beyond the current technology of deployable structures in addition to its low mass per unit length for a given stiffness. This structure is being developed for near-term use as a solar sail mast, but it is also applicable to many lighter booms that stow compactly that will be needed in the future. This new technology will be broadly enabling to future gossamer spacecraft missions, just as the coilable fiberglass boom structure has been employed in many past and ongoing missions.

The ST8 SAILMAST Validation Experiment
Michael E. McEachen*, Thomas A. Trautt† and David M. Murphy‡ ATK Space Systems, Goleta, CA 93117

=============================
Study teasing image set: HERE

====================================
====================================
Consider some labor at HG site after tote:
Consider longerons individually coiled for tote. Then manually connect battens and diagonals (per nomenclature of the JPL Sailmast); detail connecting is not right here resolved.
Add ribs (outward ribs canted for increasing hypotenuse tensioning of TE of wing's sock); add Mylar D shaper on base of one side of the Sailmast trussed boom. Sock it. Fly HG.

[JoeF]

Study:
http://www.google.com/patents/US7694486
Deployable truss having second order augmentation
David M. Murphy, Thomas W. Murphey, Michael E. McEachen, Matthew M. Botke

[JoeF]

Not sure what this might offer:
https://www.google.com/patents/US6920722
Elongated truss boom structures for space applications
Michael A. Brown, Christopher J. Butkiewiez

And explore all the referenced patents listed there.

[JoeF]

Date: Jan. 16, 2016. Journal note at waking from sleep:
"Favoring for spar: coilable shelling with interior separate air-pressured bladder; shelling coils shortwise for tote and longwish for deployed spar; hooping staying of shelling obtained by hole-hooking or snap clasps or occasional web hoops or some other means, perhaps outer case fabric tube .... Shelling would give compressive-element play; compressive element rods may then not be needed. "
