[Semper Fidelis]

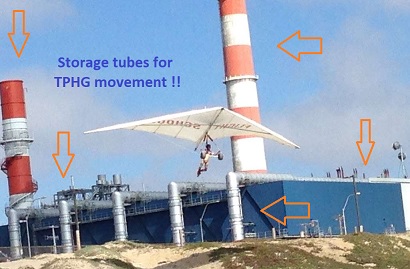

Your next challenge might be to put tires into a 1in diameter bag

Here you'll find what was the shadow I've introduced you to before..

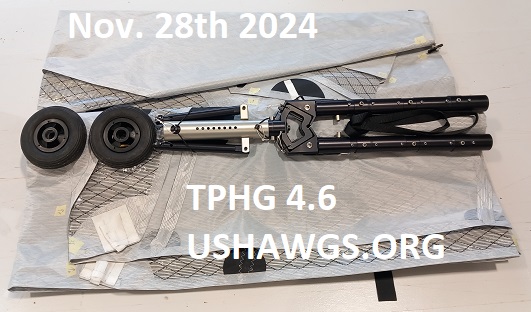

TPHG 4-6 - What makes the difference.jpg (73.98 KiB) Viewed 7 times

[JoeF]

Another exploratory One Nest TPHG may be with the following direction:

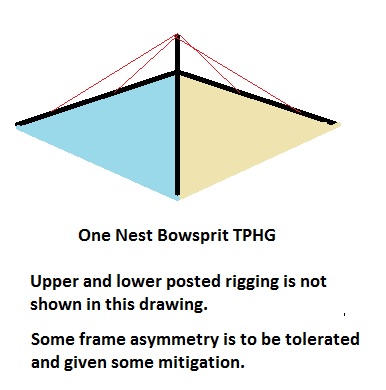

Bowsprit One Nest where the one nest has 17 concentric positions.
Some asymmetry may be tolerated and given some mitigations.

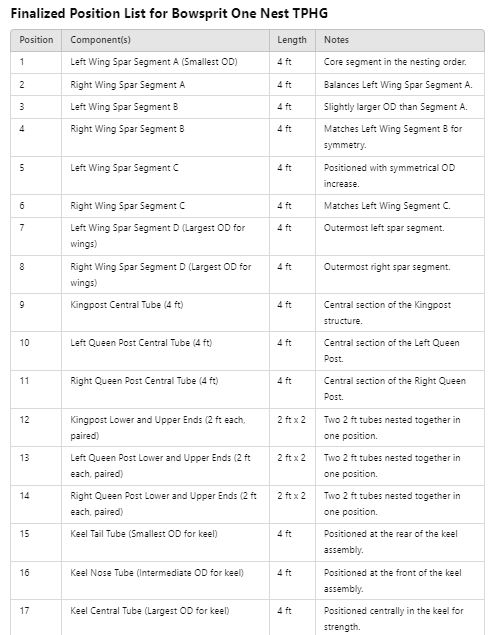

To see all rows of the table, one might have to scroll or ask browser to open image in a new tab.


Summary of Positions

1. Left and Right Wing Spars (Positions 1-8): Four segments for each wing for symmetrical structure.

2. Kingpost and Queen Posts (Positions 9-14):
- Central 4 ft tubes of each post occupy three individual positions.
- Six shorter 2 ft post ends pair up into three shared positions.

3. Keel Tubes (Positions 15-17):
- Position 15: Keel Tail Tube (smallest OD).
- Position 16: Keel Nose Tube (intermediate OD).
- Position 17: Keel Central Tube (largest OD) for enhanced buckling resistance.

Note: Proposal has no rigid control bar, but the matter sustains from rigging cross lines to get the "control cable" instead.
Note: This Bowsprit differs from the earlier explored Bow-and-Stern Sprit One Nest. The present noted Bowsprit One Nest has fewer positions in the concentric one nest.
Remember related Dial Soap bowsprit as well as other later bowsprits.
============================================================================
