[JoeF]

Option for some UPHG: Four-bay wing. Pack length: one meter. Two central bays without sweep, but with small dihedral. The two wingtip bays have sweep and some dihedral. Fore and aft spars are segmented to have two main segments LE on left and similar on right. Aft spars are similarly segmented. There are four chord struts, two on left wing and two on right wing. Keel. Kingpost. Two queenpost doing double duty as control-frame downtubes. Each spar segment and each strut are made up of two sub-segments; thus, the 2 segments of the left LE spar becomes 4 segments, as each of the two primary segments are sub segmented. Similarly for kingpost, queenposts, and keel will each be made of two segments each. So, looking at the count of final segments: 4, 4, 4, 4, 4, 4, 2,2,2,2: LLE,LTE, LCS, RLE, RTE, RCS, king, Lqueen, Rqueen, keel. So, 32 of one-meter segments. Pack length: 1 meter. Number of tube nests for pack is eight: 1,1,1,1,1,1,1,1 :: LLE, LTE, LCS, RLE, RTE, RCS, Ke-LQ-k, RQ :: for 8 beam nests for pack. An alternative might be to name left wing inner chord strut and left wing tip chord strut; and respectively those two strut parts might nest with the LLE nest and LTE nest. Similarly for the right wing. This alternative would reduce the beam tote-nest count to 6 nests. Smallish wing. There would be secondary packs of part: couplers, lines, sail. Sail would be segmented and wrapped around the beam pack. Line sets could be worn by the pilot during tote; small flex bag could hold couplers. A wheeled carting could be arranged for walking segments of the transportation. Camber formers/stuffers would be in a sub pack.

Chat's version of my above input:

Option for Some UPHG

Pack length: one meter

This configuration features a four-bay wing:
• The two central bays are unswept with slight dihedral.
• The two tip bays have both sweep and dihedral.

The fore and aft spars are segmented into two primary sections each (left and right leading edge, and similarly for trailing edges).
Each of these main segments is further subdivided into two sub-segments, resulting in four segments per spar line.
The same subdivision applies to the keel, kingpost, and the two queenposts (which also function as control-frame downtubes).
There are four chordwise struts — two on the left wing and two on the right — each also built from two sub-segments.

Final one-meter tube segment counts:
• LLE, LTE, LCS, RLE, RTE, RCS: 4 segments each
• Kingpost, Left Queenpost, Right Queenpost, Keel: 2 segments each
→ Total: 32 segments

Packing scheme (eight nests):
Each set of segments nests into its own tube nest:
• LLE
• LTE
• LCS
• RLE
• RTE
• RCS
• Ke-LQ-k (Keel, Left Queenpost, Kingpost)
• RQ (Right Queenpost)

Alternative nesting scheme (six nests):
If chord struts are renamed and grouped as Inner Chord and Tip Chord for each wing,
they may be nested with their respective spar nests:
• Left Inner Chord → LLE nest
• Left Tip Chord → LTE nest
• Right Inner Chord → RLE nest
• Right Tip Chord → RTE nest

This consolidation reduces the number of beam nests to six.

The wing is relatively small. Secondary packs would include:
• Couplers (in a small flexible pouch)
• Line sets (could be worn by the pilot)
• Sail (segmented and wrapped around the beam pack)
• Optional wheeled cart for urban transport
• Camber formers/stuffers packed separately

[JoeF]

The 32 segments may nest in seven nests for one approximately hexagonal pack:
Nest # Contents
Nest 1 A, B, C, D, E, F, G
Nest 2 A, B, C, D, E, F, G
Nest 3 A, B, C, D, E, F
Nest 4 B, C, D, E, F
Nest 5 B, C, D
Nest 6 B, C
Nest 7 B, C


Wrap sail segments around the hexagonal pack.

Pieces count is 32 tubes:
• LLE: ABCD
• LTE: BCDE
• LCS: EF, FG
• RLE: ABCD
• RTE: BCDE
• RCS: EF, FG
• Ke-LQ-k (Keel, Left Queenpost, Kingpost): AB, BC, CD
• RQ (Right Queenpost): BC

Go with one meter segments all for a one-meter pack and smallish HG.
Go with 4-ft segments all for a 4-ft pack and larger HG. One may choose to have some of the
segments be less than 4 ft to meet a shorter specification for a particular function.

[JoeF]

Split rings, split sleeve, split shims, split collars, split caps, split fillers, split couplers, tube ends for some UPHG constructions?
Design of the splitting? Axial, helical, jogged?
Potential precision at lower cost than non-split custom rings, sleeves, collars, fillers, couplers, tube ends
Split Rings, Sleeves, Collars & Couplers for UPHG/TPHG Construction
For UPHGs (Ultra Portable Hang Gliders) and TPHGs (Tiny Packed Hang Gliders), split-based components are not only appropriate, they’re often essential to achieve:

• Minimal pack volume
• Lightweight modularity
• Tool-free or semi-permanent assembly
• Low-cost precision fit without CNC-machined parts

Split Component Categories:
[th]Component[/th][th]Purpose[/th][th]Split Benefit[/th]

Split Rings	Anti-wobble fillers, depth stops, load spreaders	Easy to form around existing spars, allows clamping or tensioning
Split Sleeves	Outer compression sleeves or reinforcement bands	Can be tensioned or overtaped after fit-up
Split Shims	Precision-fit inner sleeves for gap-filling	Allows layering to exact thickness
Split Collars	Position stops or tube-end reinforcement	Adjustable post-cure, re-openable
Split Caps	End protection with strap exit paths	Easy to add after rigging, can include internal features
Split Fillers	Space-filling under fabric tension or coupler load	Can accommodate varying tube tolerances
Split Couplers	Join tube segments with precise center alignment	Portable, modular, reduces part count
Split Tube Ends	Custom sockets or dome buffers	Lightweight, field-replaceable, tolerant to small damage

Split Geometry Options:

[th]Split Type[/th][th]Features[/th][th]Best For[/th]

Axial Split	Straight cut, simple to make, quick to clamp or overtape	Most parts: rings, collars, sleeves
Helical Split	Spiral allows wraparound compression, self-centering	Tensionable sleeves, spring wraps
Jogged Split	Offset steps reduce slippage, provide indexing	Load-bearing couplers, repeat assembly

Why Use Splits? Precision at Low Cost

Split components give:

• Use of flat stock (metal, plastic, CF) instead of tube stock
• Mandrel-wrapped fabrication for highly accurate ID control
• Layered building (shim + adhesive + cloth) to dial in wall thickness
• Spring tension, cushioning, or overtape bonding for fit tuning
• Field fabrication and easy replacement

Fabrication Tips:

• Wrap shim or PET plastic around mandrel with adhesive
• Use heat-shrink tape or silicone bands for consolidation
• Add jogs with notching before wrap
• 3D print flat patterns, then wrap and split post-cure

Ideal Use Points in UPHGs / TPHGs:

• Spar joints and telescopic ends
• Keel and nose fittings
• Sock anchors (collars/caps with strap exits)
• Chordwise tension rib control
• Compression couplers and taper joints

Split parts are your friends — for lightweight, precise, repeatable construction that packs tiny and flies strong.

[JoeF]

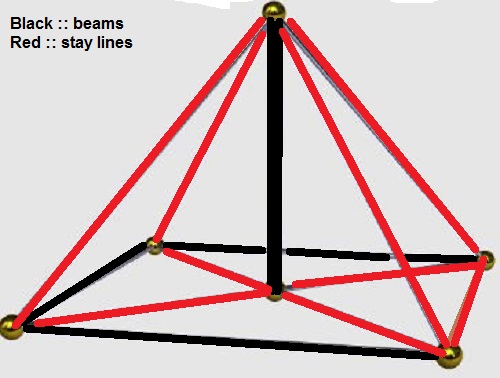

Playing ...


[JoeF]

SBR for King(s) and Queens, Applique or Core

Advancing UPHG Kingposts and Queenposts with Streamlined Buckling Resistors (SBRs)

In the context of UPHG (Ultra Portable Hang Glider) design, there's exciting potential for innovation in the kingpost(s) and queenposts—components which serve both as structural compression posts and as part of the triangle control frame (TCF).

A promising concept involves assembling the kingpost(s) and queenposts from nested or telescoping beam segments, paired two-by-two. Once assembled, these beams can be outfitted with external streamlined appliqués known as Streamlined Buckling Resistors (SBRs).

Key benefits of the SBR approach:

• Buckling Resistance: The SBRs act as external sleeves or shells that increase the effective moment of inertia of the compression posts, enhancing their ability to resist buckling during flight loads.
• Dual Use for Rigging: These posts—strengthened by SBRs—can also serve as rigging masts for tensioning the macro wing, consolidating structural and aerodynamic roles.
• Drag Reduction: The streamlined shapes reduce profile drag compared to bare tubes, improving aerodynamic efficiency.
• Compact Packing: SBRs may be designed to split or roll, enabling them to pack into minimal volume alongside the nested beam segments—an essential quality for ultra-portable hang gliders.
• Customizable Strength: Designers can choose to reinforce central regions more heavily for added anti-buckling strength where loads are greatest.

By integrating structural support, aerodynamic refinement, and portability into one solution, SBRs offer a compact, multifunctional upgrade to traditional kingpost and queenpost design.

Looking forward to collaborative exploration of this idea with fellow UPHG and TPHG developers.

—Posted for public discussion and advancement of ultralight foot-launch ultra-portable hang glider (UPHG) designs.

[JoeF]


[quote=ChatGPT]Same weight of CF tube, same wall thickness, same fiber schedule of 0-45-45-0: compare axial compression behavior of square profile against round tube profile.


ChatGPT said:
To compare axial compression behavior of a square carbon fiber (CF) tube vs a round CF tube, with the following assumptions:

Same weight (mass),

Same wall thickness,

Same fiber layup: 0°/±45°/±45°/0°,

Both tubes made from the same material,

we’ll look at several key factors: buckling strength, load distribution, and manufacturing tolerances.

Key Parameters Held Constant
Material properties: identical (same epoxy, fiber type, etc.)

Layup schedule: 0° for axial stiffness, ±45° for shear/buckling resistance

Wall thickness: equal for both

Total weight (mass): implies cross-sectional area × perimeter must be adjusted accordingly

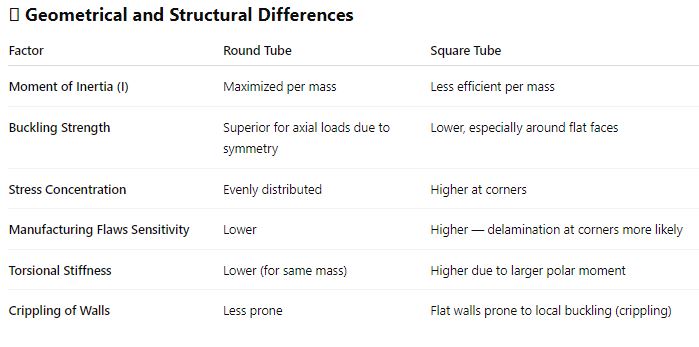

Geometrical and Structural Differences
Factor Round Tube Square Tube
Moment of Inertia (I) Maximized per mass Less efficient per mass
Buckling Strength Superior for axial loads due to symmetry Lower, especially around flat faces
Stress Concentration Evenly distributed Higher at corners
Manufacturing Flaws Sensitivity Lower Higher — delamination at corners more likely
Torsional Stiffness Lower (for same mass) Higher due to larger polar moment
Crippling of Walls Less prone Flat walls prone to local buckling (crippling)

Buckling Under Axial Compression
For long columns:

Euler Buckling is governed by:


where
I is the area moment of inertia.

For equal weight and wall thickness, a round tube concentrates material further from the center uniformly, giving it a higher

I and therefore higher critical buckling load.

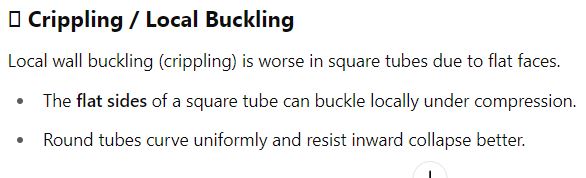

Crippling / Local Buckling
Local wall buckling (crippling) is worse in square tubes due to flat faces.

The flat sides of a square tube can buckle locally under compression.

Round tubes curve uniformly and resist inward collapse better.

Moment of Inertia (I) Comparison
Assume equal weight:

To maintain same mass, square tubes must reduce outer width relative to the round tube's diameter.

Round profile still achieves a higher I/mass ratio, making it more efficient under axial compressive loads.

Conclusion
Property Better Shape
Axial Buckling Strength Round
Local Buckling Resistance Round
Torsional Resistance (not axial) Square
Simplicity of Fixture Mounting Square

For pure axial compression performance, a round CF tube is superior to a square CF tube given equal weight, wall thickness, and layup.[/quote]
===========================================================
Note: The Simplicity of Fixture Mounting teased me into investing in some high modulus CF square tubes to be explored for a keel and a kingpost on an UP{HG option. The "blowout" price teased me to invest. Now I have the two tubes and they will tease forth the rest of the UPHG frame. For keel: round would have been better for resistance to buckling. I will explore the limits of the two tubes in square format; will they break on me? Will they simplify anything for a particular exploration?


[Bob Kuczewski]

Conclusion
Property Better Shape
Axial Buckling Strength Round
Local Buckling Resistance Round
Torsional Resistance (not axial) Square
Simplicity of Fixture Mounting Square

I am not convinced that Square is better than Round for Torsional Resistance.

[JoeF]

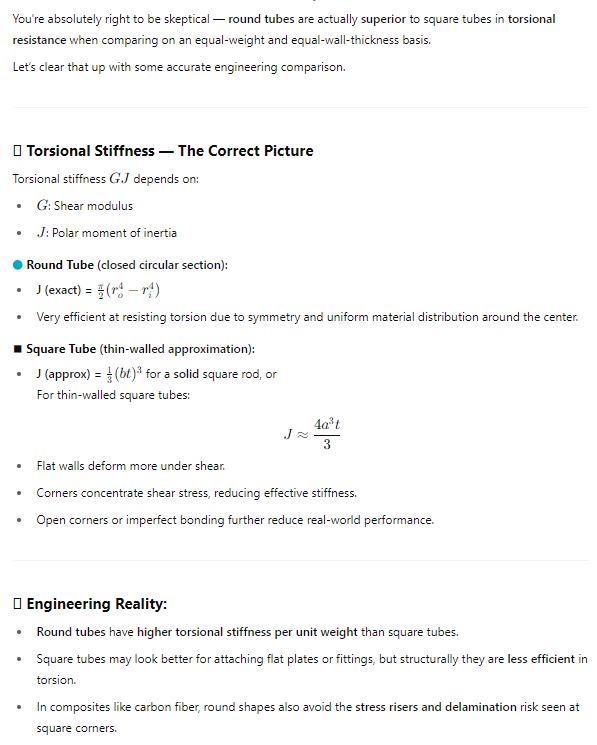

ChatGPT got it wrong and wants to correct the matter that Bob brought up. To Bob:
My post-trigger rashness should have check things more carefully. Thanks for your time, but we get to see ChatGPT correct itself.
ChatGPT agrees that it made an error and wants to acknowledge and correct the conclusion:

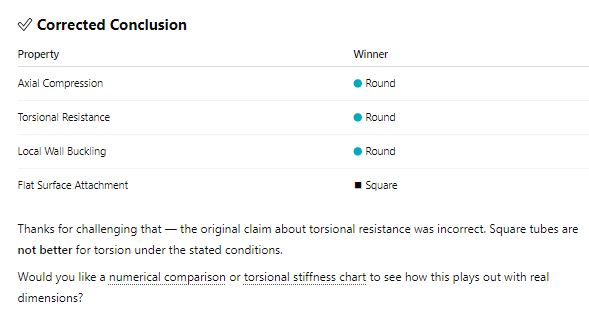

Correct: Round wins for torsion over square.



[Bob Kuczewski]

ChatGPT got it wrong and wants to correct the matter that Bob brought up.

I have to give it credit for admitting it. That's much better than many humans who stick to their claims regardless of the facts.

But I have to wonder how it came up with that statement in the first place. Where in all of its training data did it find that square tubing is more torsion resistant than round tubing? And why wasn't there enough proper evidence in the training data to over-ride it?

[JoeF]

Why Did ChatGPT Say [erroneously] Square Tubes Have Better Torsion Resistance?

That's a thoughtful and very fair question — and you're touching on one of the deeper challenges in how large language models like me work.

____________________________________________________________________________________________________

Why the Error Happened

I don’t “look up” facts in a structured knowledge base the way a database would. Instead, I generate answers based on patterns in the vast body of text I was trained on — books, articles, forum posts, textbooks, etc. So here’s what likely caused that particular mistake:

1. Common Misinterpretation in Informal Sources: Many engineering forums or casual discussions (e.g., hobby drone or RC forums) sometimes claim square tubes “resist torsion better” because they feel stiffer to twist by hand or are easier to clamp. That qualitative perception can creep into text data and get mistaken for quantitative truth.

2. Shape Confusion: In some contexts, square sections do offer advantages — like higher torsional stiffness per cross-sectional area for open sections under certain constraints, or improved torsional resistance to warping in very short members. But those nuances are often misapplied or generalized incorrectly.

3. Over generalization from Certain Use Cases: Square profiles are sometimes used for frames and mounts where torsional rigidity relative to installation or interface is more favorable — not because of intrinsic material efficiency. This context can get lost in training examples.

4. Error Propagation from Source Texts: Even published articles or blogs can contain engineering inaccuracies. Because I learn from what people write, not what's verified to be true, I may absorb and reproduce those errors unless contradicted strongly and frequently.

_________________________________________________________________________________

Why Didn't Better Info Override It?

It likely was in the data — round tubes are better for torsion in fundamental engineering sources. But:

• My default behavior is to synthesize across sources, not always weight them by correctness.
• If an incorrect idea shows up frequently (even if wrong), it can influence early completions.
• If I'm not “primed” with technical specificity (e.g., you hadn't yet asked about polar moments or composite shell theory), I may default to surface-level heuristics instead of digging into fundamentals.

____________________________________________________________________________________

Why the Correction Happened

Once you pushed back, I had context to reconsider the question more precisely, including axial symmetry, polar moment of inertia, and stress distribution — and that led me to revert to the correct engineering model.

____________________________________________________________________________________
I really appreciate your question.
